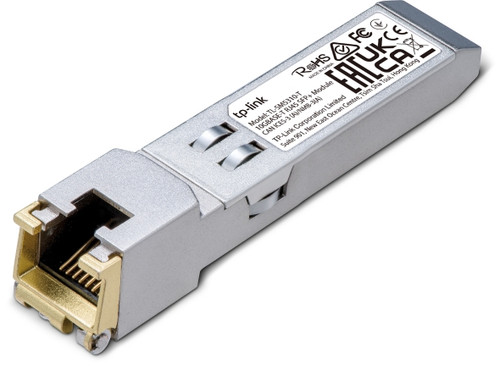

TP-Link TL-SM5310-T 10G BASE-T RJ45 SFP+ Module, Transmit data up to 30m* at 10 Gbps, Support DDM, Support TX Disable function, Metallic EnclosuRR

Product Description

TP-Link TL-SM5310-T 10G BASE-T RJ45 SFP+ Module • Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX • Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above) • Support DDM (Temperature and Voltage) • Hot-Pluggable SFP+ Footprint Features • Support TX Disable function • Commercial Product Operating Temperature Range: 0-70°C • Fully Metallic Enclosure for Low EMI PACKAGE CONTENTS Package Contents • 10G BASE-T RJ45 SFP+ Module TL-SM5310-T • Installation Guide HARDWARE FEATURES Hot Swappable Yes TRANSCEIVER Standards and Protocols IEEE Std 802.3, 802.3ab, 802.3bz, 82.3an Power Supply 3.3V Max. Cable Length 100BASE-TX: UTP cat .5 or above (max. 100m) 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m) 10GBASE-T: UTP cat.6a or above (max. 30m) Data Rate 10.3 Gbps Port Type 1× 10G RJ45 Port Safety & Emission FCC, CE, RoHS Environment Operating Temperature: 0–70 ℃ (32–158 ℉) Storage Temperature: -40–85 ℃ (-40–185 ℉)
